This directory contains various simulation of the M-Bus part of MBus_USB.pdf. The simulattions are done with qucs-s using ngspice as simulation backend.

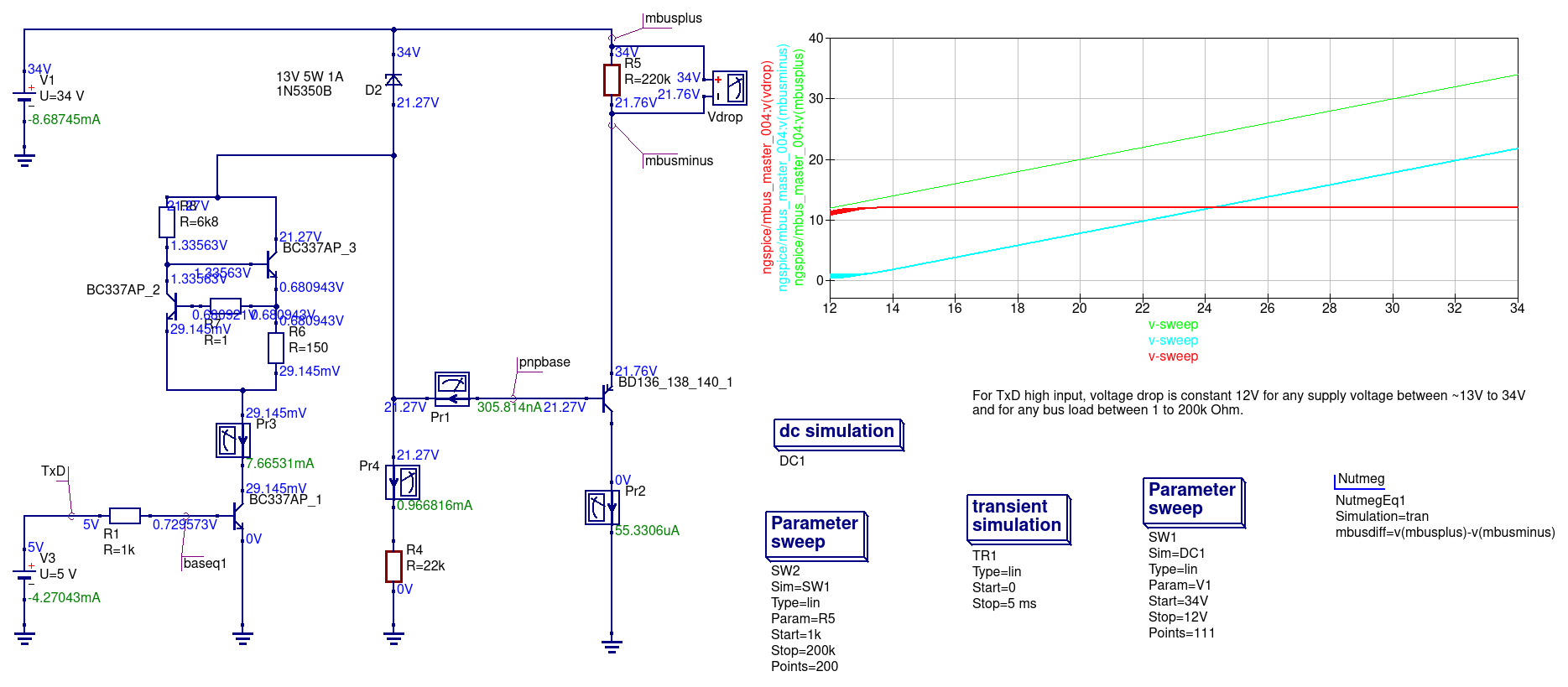

The first simulation is as close to the original as possible and gradulally changed to remove receiving parts and using a zener diode to have a constant 12V voltage drop regardless of the power supply. The final version works with any voltage in M-Bus range.
